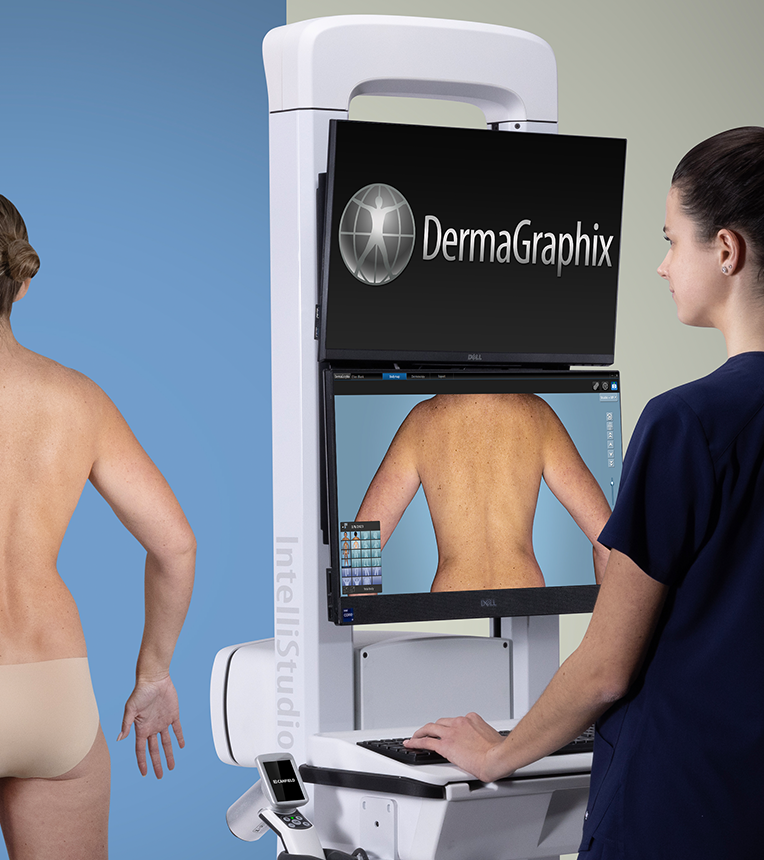

IntelliStudio® Dermatology
Intellistudio

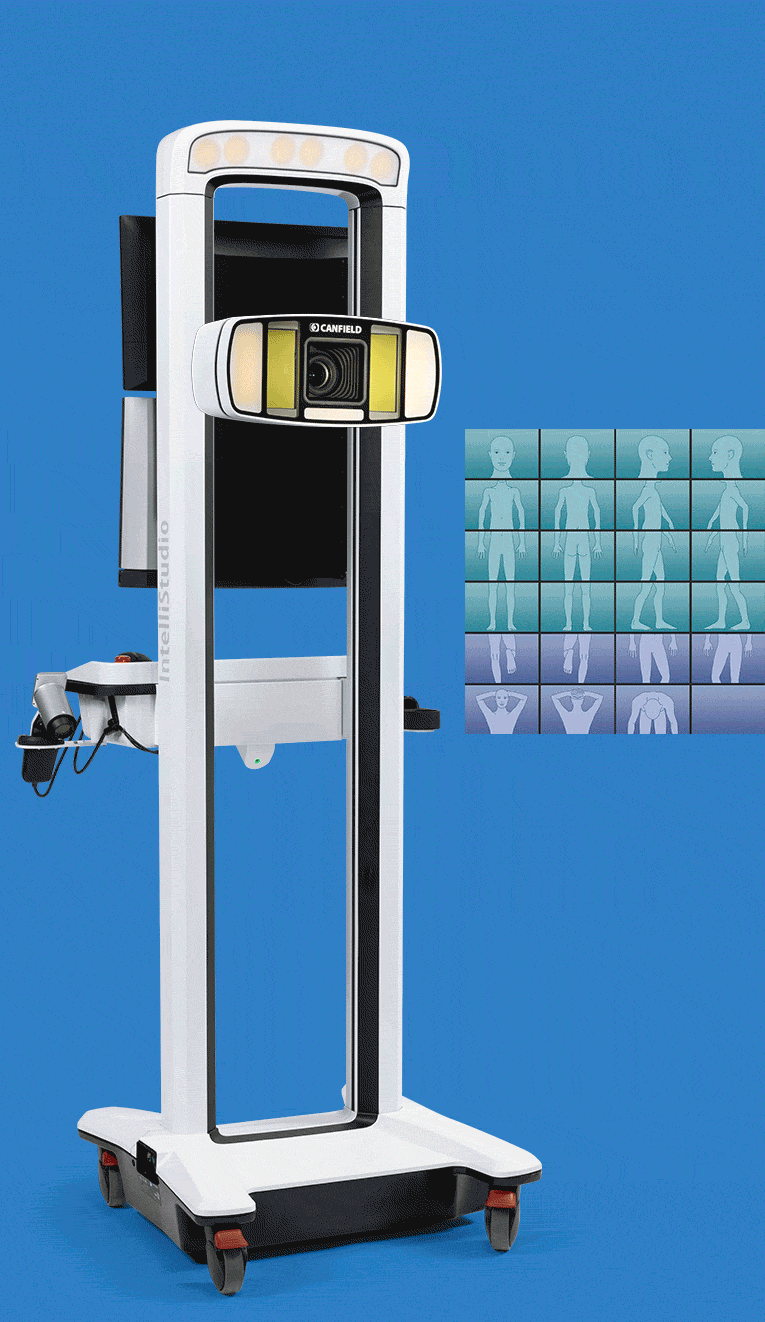

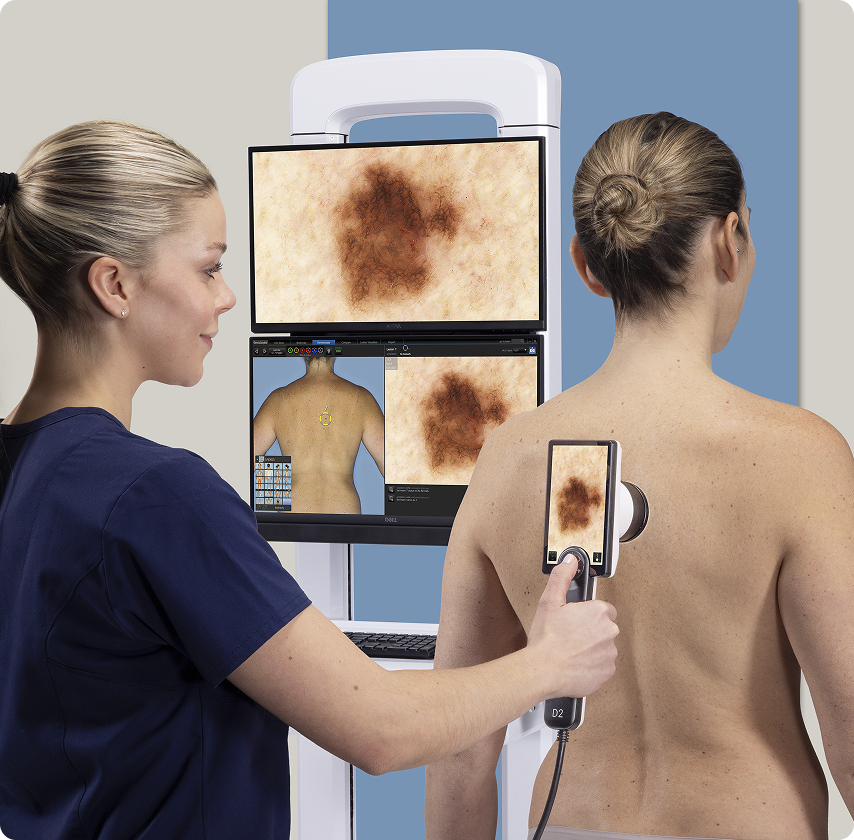

The new 3rd generation IntelliStudio sets the highest standard for image quality that rivals dermoscopy.

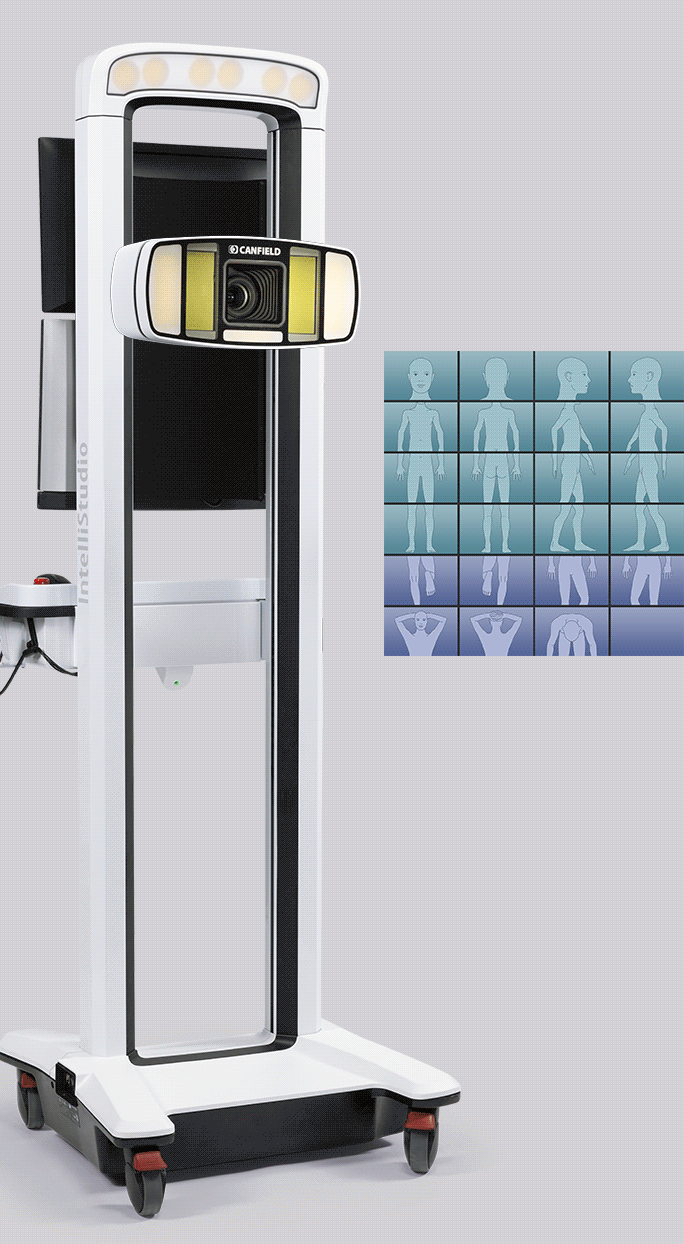

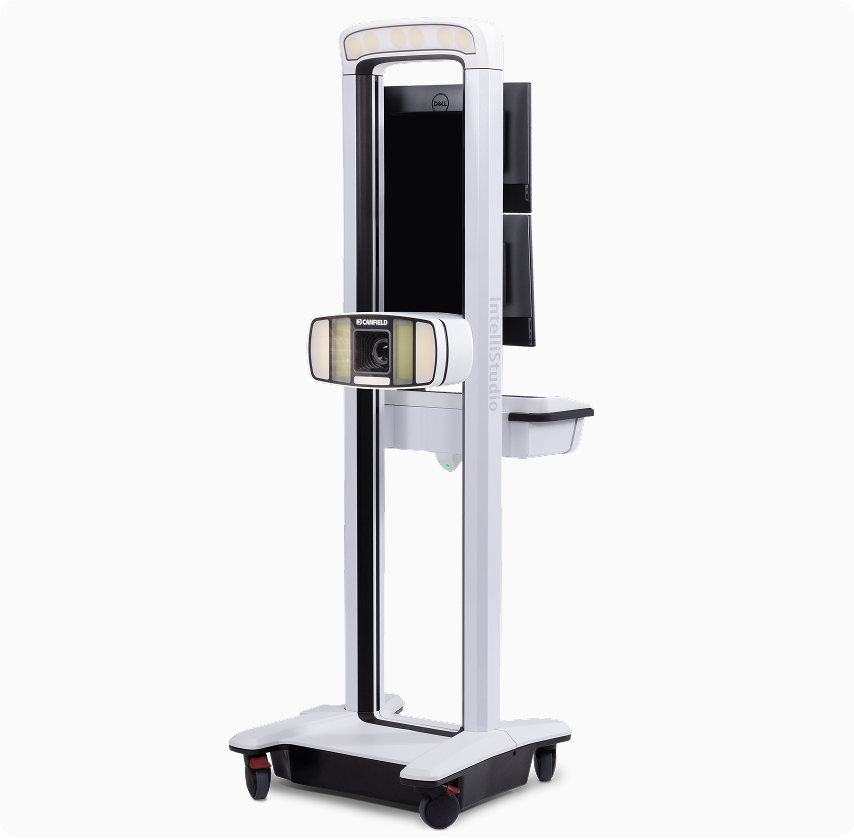

Motorized programmable lift ensures repeatable camera positions and lighting.

Standardized templates control camera settings and guide patient poses.

Automated sequencing guides the user through captures - no special photography skills needed.

Lighting

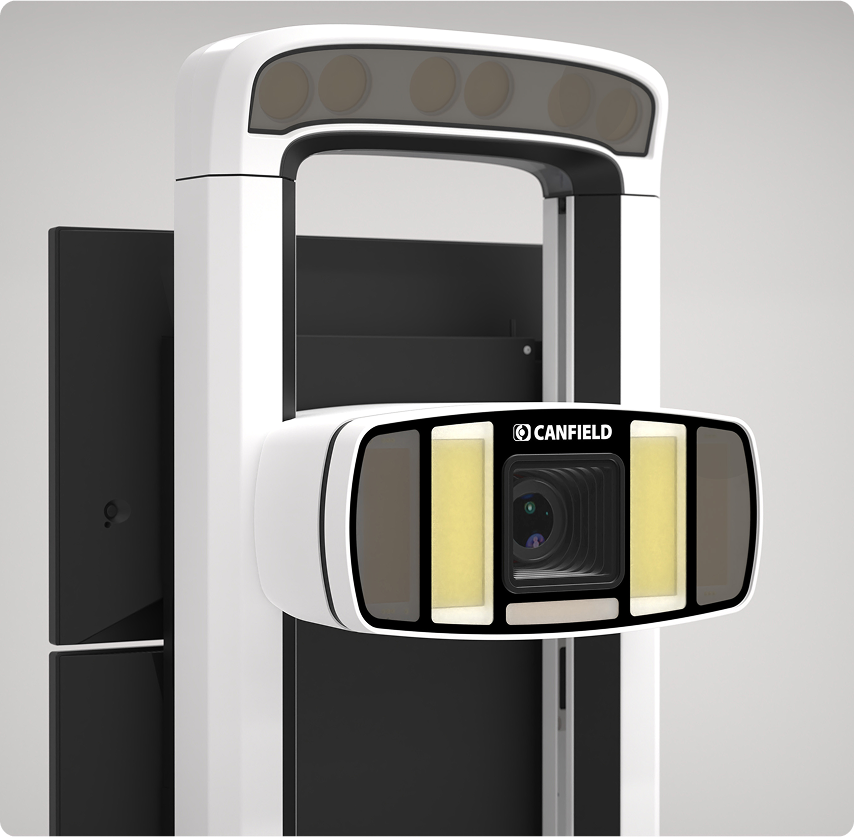

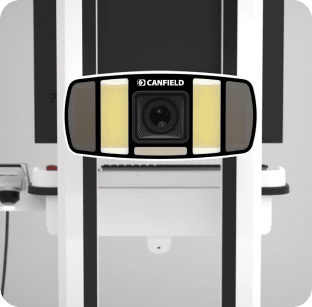

Non-polarized and cross-polarized lighting reveals skin features. Both lighting modes are captured sequentially in less than a second, enabling perfect registration.

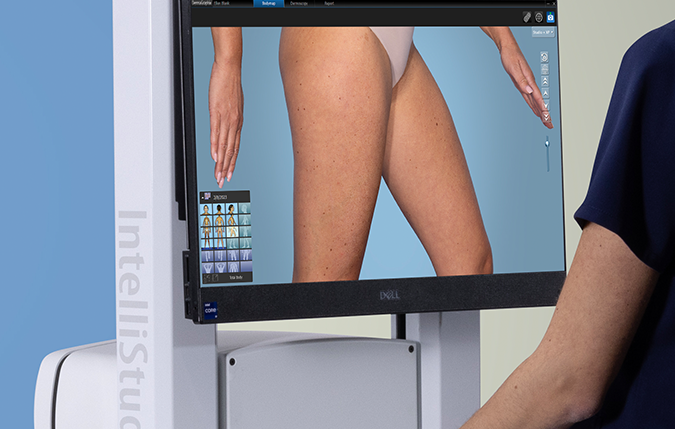

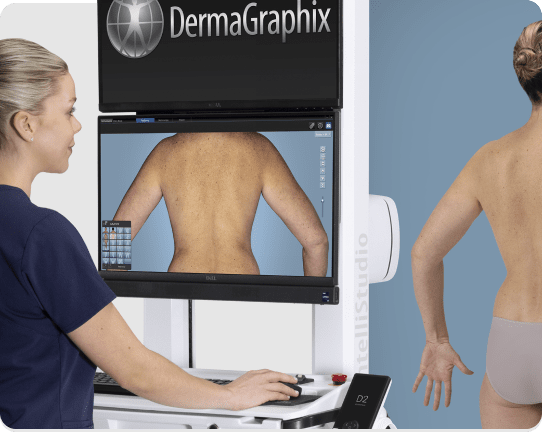

Fully automated capture of body map photos DermaGraphix capture templates control camera settings and guide patient poses, while the motorized programmable lift ensures repeatable camera positions and lighting for consistent whole body photography with minimal staff training.

Intellistudio Body Map

Tech Specs & Requirements

System Power
  • 100-120V AC, 50/60 Hz, 10.0A or
  • 220-240V AC, 50/60 Hz, 10.0A
  • Class I Laser
    • IEC 60825-1:2014
    • Max output of laser radiation is less than 10mW
Capture Computer
  • Configured and supplied by Canfield. Computers from other suppliers are not supported.
Consultation Computer Recommendations (not supplied)
  • Operating system:
    • Windows 10 or 11 Professional, 64 bit – (Recommended)
    • NOT SUPPORTED: Windows Home Edition and Windows VISTA
  • Processor: Intel Core i7 10th Gen (or higher)
  • System memory (RAM): 32 GB or higher
  • Minimum 2 GB available disk space for installing application
  • Minimum 1 TB available disk space recommended for data
  • Graphics card:
    • 2 GB dedicated memory minimum (4 GB Highly Recommended)
    • Dedicated nVidia or AMD cards (nVidia Highly Recommended)
    • Driver: latest available
    • 3.0 or later Open GL
  • USB Ports: 2 dedicated ports (USB 2.0)
  • Display: 1920 x 1080 (FHD) minimum; 3840 x 2400 (4K) maximum
  • Microsoft Security Essentials anti-virus software recommended
  • Wired printers (recommended for speed)
  • 1 Gbps Ethernet connection for networking - Wifi not supported
Software
  • IntelliStudio® Capture Module
  • DermaGraphix® Module
  • Mirror® PhotoFile®
  • Mirror® PhotoTools
Mirror iPad App
  • Miminum support of 802.11n or later protocol by the intra-office Wi-Fi router
  • Requires iPad capable of running the current version of iOS
  • Mirror desktop software running on Windows OS is required to support Mirror iPad app database
Server / Network Guidelines (not supplied - Minimum recommendations)
  • Windows Server 2016 64-bit and 2019 64-bit
  • Microsoft SQL Server 2017 and 2019 (Express edition is installed by default)
  • 2.2 GHz or faster processor
  • 16GB system memory (RAM)
  • 1 Gbps wired LAN connectivity (Wi-Fi not supported)
  • 1 Terabyte HDD, minimum. Space required is dependent upon patient volume, camera used, and settings.
  • RAID 1 - NOT SUPPORTED
  • Regularly scheduled backups are highly recommended.
Notes
  • We do not support using a server class OS as a workstation.
  • WAN Connectivity is NOT supported
  • Workstation based cloud licensing

Canfield Care® Support & Training

Canfield Care includes:
  • Unlimited expert technical assistance
  • Remote diagnostic service
  • Advanced hardware exchange
  • Marketing support
  • Remote training
  • Unlimited Webinars ($250 value per webinar)
  • ViewMyConsult® client portal
  • Your Canfield purchase includes 5 years of complimentary Canfield Care support and training.
  • Extended Canfield Care is available
  • On-site training: Additional on-site training by Canfield experts is available.
  • Contact Canfield or your Canfield Authorized Distributor for pricing and additional information.
