Dermoscopy Reimagined

Now also available on macOS^® CONNECT WITH AN EXPERT

NEW

THE Leading dermoscopy-based medical device where AI supports your skin cancer assessment.

CE Marked | EU MDR Class IIb*

With a game-changing, high-resolution display, the D2 offers an intuitive, ergonomic interface that enhances the user experience.

Achieve consistent and standardized imaging, ensuring reliable documentation and precision in every capture.

Unrivaled image quality
Most efficient workflow
Sequential cross-polarized, non-polarized and UV capture
Capture both clinical and dermoscopy images
Award winning design

CONNECT WITH AN EXPERT

TheSoftware

DermaGraphix^® Integration

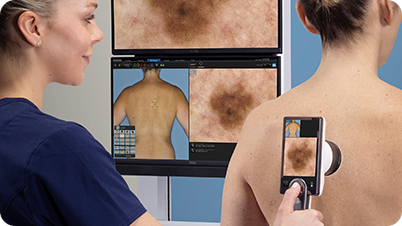

D2 is fully integrated with DermaGraphix body mapping software to deliver fast and repeatable lesion management.

Navigate, capture and localize images directly from the D2 without touching the computer.

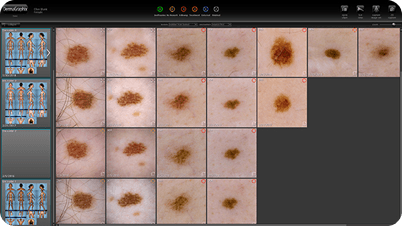

The DermaGraphix dashboard organizes dermoscopy images for optimal review and assessment.

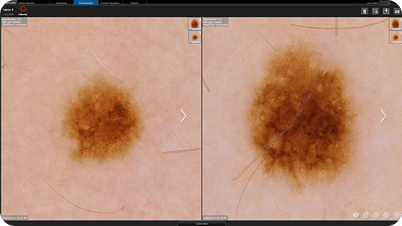

Screenshot of side-by-side comparison of overview and dermoscopic images

Easy surveillance with side-by-side comparison of overview and dermoscopic images.

HairMetrix^® Integration

The world's first AI-driven consultation tool without the need for hair clipping, enabling easily tailored treatment plans.

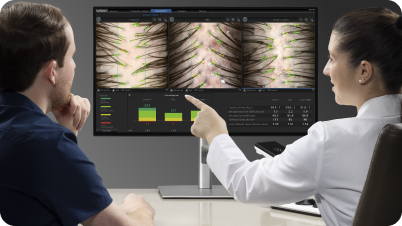

HairMetrix uses the latest AI algorithms to immediately analyze unclipped trichoscopy images.

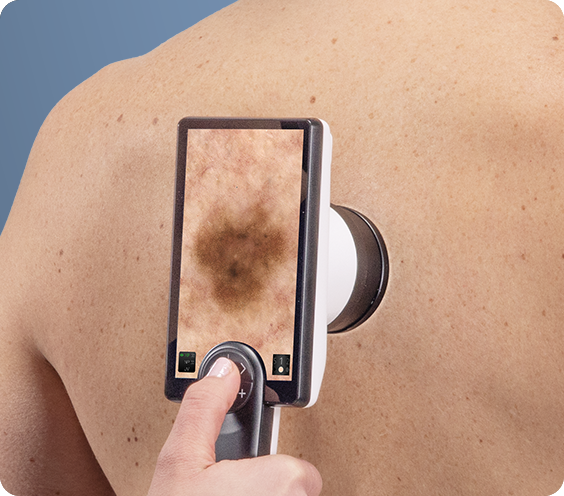

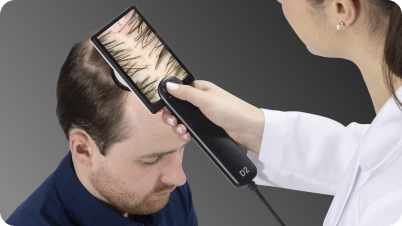

A live image is displayed during the examination. It can be magnified, saved, analyzed, and assigned directly from the camera without a mouse or keyboard.

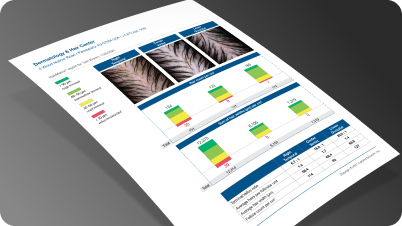

Clear printed reports customized with your practice branding.

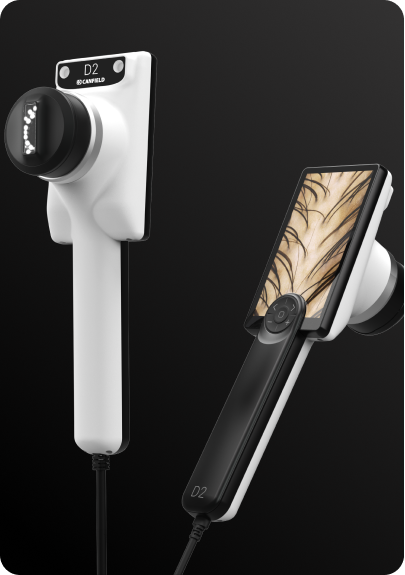

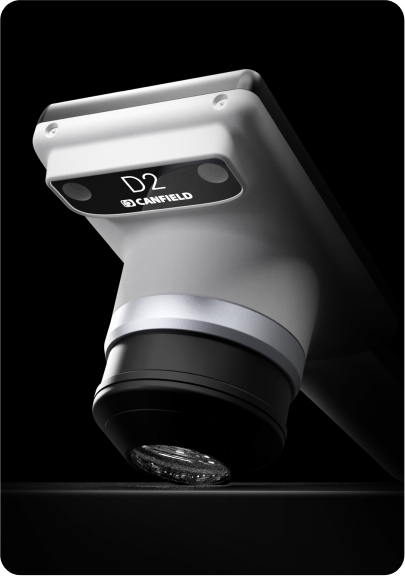

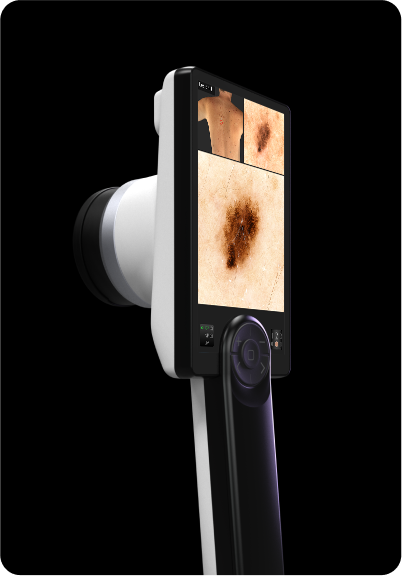

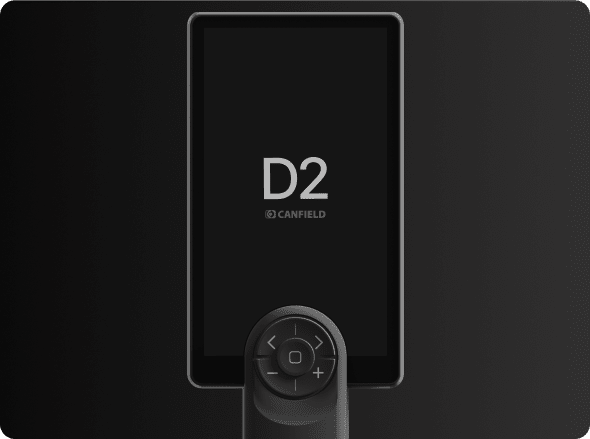

D2A Closer Look

Tech Specs &Requirements

Specifications Requirements

Magnification

15x-200x

Screen

High resolution multi-touch display

User Interface/ Controls

Physical button keypad capture interface

Cone Accessories with Auto Recognition

Smart Contact
Non-contact
Hair Cone Attachments

Connectivity

USB 3.0 for Fast Communication

Instructions For Use

Accessible through Canfield Connect^® resources.

Windows Computer Minimum Requirements

Windows hardware: 2023 or newer
Operating system
- Windows 11 Professional 64 bit
- Not Supported: Windows Home Edition
Processor: 14th Gen (or higher) Intel Core i7/Ultra 7, or AMD equivalent (14th Gen or higher Intel Core i9/Ultra 9, or AMD equivalent, recommended)
System memory (RAM): 32 GB or higher recommended
Minimum 5 GB available disk space for installing application
Minimum 500 GB available disk space (1TB or higher recommended for capturing to local database)
USB Ports: 1 USB 3.0 (or higher) port required for D2 Scope
Graphics card:
- 4 GB dedicated memory minimum (or higher)
- Dedicated nVidia or AMD cards (nVidia Highly Recommended)
- Driver: latest available
- 3.0 or later Open GL
Display: 1920 x 1080 (FHD) minimum; 3840 x 2400 (4K) maximum (max 200% scaling)
1 Gbps wired LAN connectivity (Wi-Fi not supported)

Windows Server Minimum Requirements

Windows Server 2022 64-bit or 2025 64-bit
Microsoft SQL Server 2019 or 2022 (Express edition is installed by default)
2023 or newer processor
16GB or higher memory
1 Gbps wired LAN connectivity (Wi-Fi not supported)
1 Terabyte HDD recommended. Space required is dependent upon patient volume and settings.
RAID 1 - NOT SUPPORTED
Regularly scheduled backups are highly recommended

Mac Computer Minimum Requirements

Mac hardware: 2023 or newer
Operating system: macOS Tahoe and Golden Gate
Processor: Apple M3 (or higher) – Intel Processors not supported
System memory (RAM): 16 GB (or higher)
Minimum 4 GB available disk space for installing the application
Minimum 500 GB available disk space (1TB or higher recommended for capturing to local database)
Graphics card: Apple M
USB Ports: 1 USB 3.0 (or higher) port required for D2 Scope
Display: Effective Resolution of 1920 x 1080 or greater
Optional: 1 Gbps wired LAN connectivity (remote DB access not supported over Wi-Fi)

Mac File Server Minimum Requirements

Windows or Mac based server that meets Minimum Computer Recommendation
Windows OS:
- Windows Server 2022 64-bit or 2025 64-bit
- Microsoft SQL Server 2019 or 2022 (Express edition is installed by default)
macOS:
- MySQL Server 8.0.41 or higher
1 Gbps wired LAN connectivity (Remote Database access over Wi-Fi not supported)
16GB Memory (or higher)
1 Terabyte HDD recommended. Space required is dependent upon patient volume, camera used, and settings.
RAID 1 - NOT SUPPORTED
Regularly scheduled backups are highly recommended

Software

HairMetrix® Module
DermaGraphix® Module

Notes

Server class OS not supported as a workstation
WAN is supported only with 1/5/10Gbps connectivity.
Workstation based cloud licensing
Space required dependent upon patient volume
XP and NP bodymap photos with ten D2 dermoscopy images (XP, NP, UV): 3 GB; 333 sessions per TB
XP (only) bodymap photos with ten D2 dermoscopy images (XP, NP, UV): 2.3GB; 445 sessions per TB
A minimum of 1 Gbps network speed is required to access the storage location of the live copy of the data (10 Gbps recommended). Wi-Fi is not supported for workstation connectivity
Maximum 25ms latency required to the storage location of the live copy of the data
Anti-virus exceptions must be put in place to avoid any latency
SSD Storage is highly recommended
Cloud storage (Azure, AWS, Google Cloud, Etc.) is not supported for storing data, but can be used for backup purposes
RAID 1 is not supported
The Machines/PC/Server where the Canfield services are running must have a static IP address
In a networked environment, the services(s) need to run with a dedicated service account where the password does not expire, and it has access to the DB and the images folder

CONNECT WITH AN EXPERT

*Available in the EU. In all other countries, DEXI and Lesion Visualizer are for research use only.

*DEXI & Lesion Visualizer are available within the DermaGraphix platform.
