Complete 3D Imaging Solution for Body, Breast, and Face

Capture face, breast, and body images in ultra-high resolution 3D, and show your patients the exciting possibilities of their simulated aesthetic procedures.

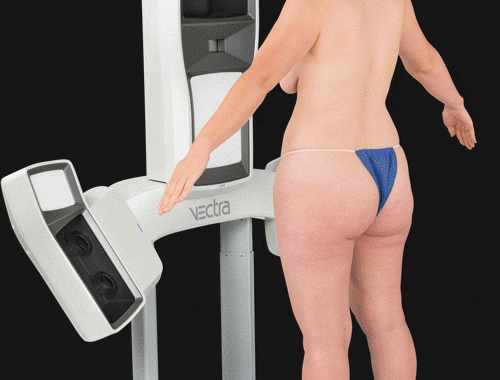

Now with 360° body imaging and circumferential measurements.

Read VECTRA testimonials.

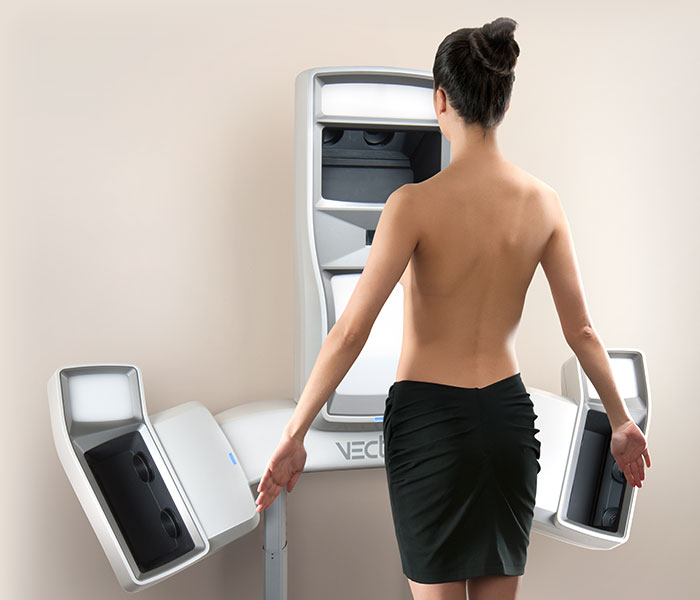

VECTRA® XT

A single system to capture 3D face, breast, and body images.

With ultra-high resolution color image capture, VECTRA XT assures razor sharp definition of the smallest details. Its elegant design complements your space. With a wall projection of less than 17", it takes up hardly any floor space.

  • Proprietary lighting system automatically adjusts for optimal face, breast and body imaging.
  • Compact design projects less than 17 inches from the wall.
  • Capture time of 3.5 milliseconds makes the VECTRA system immune to subject movement.
  • Software controlled height adjustment for fast accurate positioning.
VECTRA 3D XT

Communicate the Possibilities

Engage in a streamlined, persuasive consultation as you view the three-dimensional image from any angle, zoom in for a closer look, superimpose the simulation over the pre-op, compare side-by-side, or fade between the two.

Differentiate Your Practice

Increased patient referrals and drive greater media exposure with state-of-the-art assessment tools and realistic 3D results.

Communicate the Possibilities

Use your patient's own image to explore possible outcomes, educate them about their options, explain limitations, and set appropriate expectations.

Close More Complementary Procedures

Show the difference between the likely outcome of a single procedure or by combining multiple procedures.

Increase Patient Satisfaction

Visualize your patient's expectations, arrive at a shared understanding of treatment objectives, and help your patient decide on the best possible treatment plan.

Assess, Educate & Simulate Outcomes


Automated Measurements

Automated Measurements

Automated measurements, some only possible with 3D technology, help your patients understand their current condition.

Gray Mode

Gray Mode

Gray mode reveals contours, presenting opportunities for corrective procedures.


RBX® Technology

RBX® Technology

Canfield's proprietary RBX® technology separates the unique color signatures of Red and Brown skin components for unequaled visualization of skin conditions.

Markerless Tracking

Markerless Tracking

Markerless Tracking provides a dynamic assessment of skin surface changes. Skin surfaces are automatically aligned, tracked and mapped.


Volume Difference

Volume Difference

Automatic volume difference measurement with one click. Visualize the degree of contour change with a color distance map.

Automatic Stitching

Automatic Stitching

A front and back view of the patient are automatically stitched together into a single, seamless wraparound image, providing a more complete visualization of the structural and aesthetic appearance of a patient's body.


Circumferential Measurements

Circumferential Measurements

Automated circumference and volume measurements for body contouring with 360° imaging.

Contouring

Contouring

Simulate removing volume from, or adding volume to the face and body.


Dorsal Adjustment

Dorsal Adjustment

Slider-based dorsal height adjustment for instantaneous three-dimensional rhinoplasty simulation.

Select Breast Implants

Select Breast Implants

Select breast implants from the product catalogs you normally use.


Dynamic Soft Tissue Modeling

Dynamic Soft Tissue Modeling

Sculptor's dynamic soft tissue modeling technology generates actual 3D models of the implants you select and calculates a realistic outcome based upon gravity, the shape and placement of the selected implant.

Visualize Expectations

Visualize Expectations

Visualize your patient's hopes and expectations with Sculptor's powerful viewing tools.


Breast Revision

Breast Revision

Breast Sculptor’s® new Revision tool provides slider-based controls to simulate the replacement of current implants with new larger implants. Volume can be adjusted independently for each breast, or linked for matching changes.

Mastopexy Interface

Mastopexy Interface

The Mastopexy interface in Breast Sculptor® closely models the way you perform surgery, including adjustable incisions used to simulate the excising of skin.


Overlaying

Overlaying

Overlaying her pre-op image with the simulated outcome makes the differences more apparent.

Complementary Procedures

Complementary Procedures

Help your patient decide on the best possible treatment plan by showing the difference between the likely outcome with single or multiple procedures.


Compare Multiple Scenarios

Compare Multiple Scenarios

Compare multiple implant scenarios with different size, style and shape options.

Patient Education

Patient Education

Breast Sculptor's patient education module provides a series of checklist-style customizable disclaimers with relevant visual tools and measurements to streamline your informed consent process.


ViewMyConsult® Integration

ViewMyConsult® Integration

TheViewMyConsult® patient portal gives your patients secure access to their VECTRA 3D images, and your treatment recommendations, with a single click. Now with one step integration of ASAPS Smart Beauty Guide electronic procedural brochures.

Canfield Care® Available

Canfield Care® Available

Unlimited technical support, hardware warranty, training webinars, software upgrades and ViewMyConsult® access.


HIPAA Compliance

HIPAA Compliance

Canfield Imaging Systems is making every effort to develop software that integrates easily into a HIPAA-compliant practice and to assist our customers in complying with HIPAA.

SculptMyDream® Listing

SculptMyDream® Listing

Your practice is listed in the SculptMyDream® doctor locator (www.sculptmydream.com), so that women who are exploring breast augmentation surgery can find you quickly and easily.

VECTRA products and features are developed in collaboration with industry leading doctors.

View the VECTRA Advisory Panel

Tech Specs

Specifications

Capture System
  • 1.2 mm geometry resolution - face captures (triangle edge length)
  • 3.5 milliseconds capture time
  • On-board modular, intelligent flash units
  • Stereophotogrammetry technology
  • Floor stand with motorized lift to adjust for patient height
  • Dell computer and flat panel display
  • Download Dimensional Specifications (pdf)
Software
  • VECTRA Capture Module
  • Face Sculptor®
  • Breast Sculptor®
  • Body Sculptor®
  • Skin Analysis Sculptor (optional)
  • RBX® image processing
  • VECTRA® 3D Analysis Module
  • Mirror® PhotoFile®
  • Mirror® PhotoTools

Requirements

System Power
  • 110-120V AC, 50/60 Hz, 5.0A or
  • 220-240V AC, 50/60 Hz, 5.0A
Capture Computer
  • Configured and supplied by Canfield. Computers from other suppliers are not supported.
Consultation Computer Recommendation (not supplied)
  • Operating system:
    • Windows 10 Professional 64 bit (Recommended) or Windows 11 Professional 64 bit
    • NOT SUPPORTED: Windows Home Edition and Windows 7
  • Processor: Intel Core i7 10th Gen (or higher)
  • System memory (RAM): 16 GB or higher
  • Minimum 2 GB available disk space for installing application
  • Minimum 1 TB available disk space recommended for data
  • Graphics card:
    • 2 GB dedicated memory minimum (4 GB Highly Recommended)
    • Dedicated nVidia or AMD cards (nVidia Highly Recommended)
    • Driver: latest available
    • 3.0 or later Open GL
  • USB Ports: 2 dedicated ports (USB 2.0)
  • Display: 1920 x 1080 (FHD) minimum; 3840 x 2400 (4K) maximum
  • Microsoft Security Essentials anti-virus software recommended
  • Wired printers (recommended for speed)
  • 1 Gbps Ethernet connection for networking - remote DB access not supported over Wi-Fi
Mirror iPad App (used for VECTRA 3D images)
  • Minimum support of 802.11n or later protocol by the intra-office Wi-Fi router
  • Requires iPad capable of running the current version of iOS
Server / Network Guidelines (not supplied - minimum recommendations)
  • Windows Server 2016 64-bit and 2019 64-bit
  • Microsoft SQL Server 2017 and 2019 (Express edition is installed by default)
  • 2.2 GHz or faster processor
  • 16GB system memory (RAM)
  • 1 Gbps wired LAN connectivity (Wi-Fi not supported)
  • 1 Terabyte HDD, minimum. Space required is dependent upon patient volume, camera used, and settings.
  • RAID 1 - NOT SUPPORTED
  • Regularly scheduled backups are highly recommended.
Notes
  • We do not support using a server class OS as a workstation.
  • WAN Connectivity is NOT supported.
  • Workstation based cloud licensing

Frequently Asked Questions

Why should I have Breast Sculptor in my practice?

Breast Sculptor improves doctor-patient communication by allowing them to view and discuss realistic and personal simulations of breast augmentation procedures;

  • using a 3D image of the patient's own body and 3D models of saline and gel implants.
  • eliminating the need for time-consuming and patient-unfriendly processes such as reviewing photographs and stuffing bras.

Surgeons have differentiated their practices by offering Breast Sculptor consultations, and it has brought print and broadcast media attention to surgeons across the country. At the same time, these surgeons have seen a substantial increase in conversion rates for breast augmentation procedures.

What facial procedures are possible?

Face Sculptor currently provides the ability to model in 3D several facial procedures, including;

  • Rhinoplasty
  • Chin augmentation
  • Chin liposuction
  • Injectables (fillers and toxins)
  • Face lifts
  • Lip augmentation
Is Face Sculptor easy to use?

Face Sculptor software is very easy to use. Graphical instructions, easy adjustment sliders and intuitive software guide the user to ensure that realistic surgical models are easily created. Face Sculptor's convenient viewing tools makes it easy to show your patient the likely outcome from any angle, as well as superimposed over the pre-op image or side-by-side.

What types of facial adjustments are possible?

Several types of adjustments are provided to enable simulating most surgical and non-surgical procedures. Constrained and unconstrained tools are used to adjust the shape of the face, such as modifying the bridge of the nose, adding filler to the malar pad region and liposuction of the chin and neck. Additional skin texture tools are used to adjust surface changes, such as adding toxins, filling in nasolabial folds and skin resurfacing.

Can I model more than one procedure on the same image?

Yes. A patient initially interested in modifications to only one portion of their face, for instance their nose, can also be shown the effects of changes made to a complementary portion of the face such as their chin.

Can I use the modeled images as a reference during surgery?

2D images, saved from any angle of the 3D image, can be copied into a printable report for use during surgery. It is also possible to load the 3D image onto a PC located in the operating room, enabling the surgeon to use an electronic copy of the 3D image as a reference.

Do I need special lighting in my room to capture accurate images?

No. The VECTRA system includes lighting designed specifically for clinical photography, producing images without shadows and with color that matches the patient's own skin tones. No additional lighting is necessary

Is the quality of the patient's 3D image good enough to show on my large-panel display?

Yes. Canfield's 3D Mirror Imaging system provides high resolution images, suitable for displaying on large format displays in the surgeon's consultation rooms or office. Even the pores on the patient's skin are displayed

What is included with Face Sculptor?

Face Sculptor software comes as part of a complete turn-key solution suitable for professional Face Sculptor consultations. This solution includes the VECTRA High Resolution 3D Capture System, 3D Mirror software, computer, and one day of installation and training.

Can I run Face Sculptor on the computer in my consultation room?

Yes. Face Sculptor may be run from a computer other than the one provided with your turn-key system. The high quality Face Sculptor images may require additional graphic card performance. Contact Canfield Imaging Systems to see if your computer is adequate for running Face Sculptor. If not, we can make recommendations for computers or upgrades best suited for this purpose.

Why should I have Face Sculptor in my practice?

Face Sculptor will enhance your patient's consultation experience, helping them visualize their hopes and expectations by;

  • communicating the possibilities as you demonstrate surgical and non-surgical facial procedures on a 3D image of your patient's face, while arriving at a shared understanding of treatment objectives.
  • exploring the combined effects of complementary procedures, such as rhinoplasty and chin augmentation, improving your patient's satisfaction, while also increasing the amount of procedures you perform.

This will increase conversion rates, help ensure post-surgery satisfaction and generate more patient referrals.

Where can I purchase Breast Sculptor?

Breast Sculptor and 3D Mirror systems are manufactured in the United States by Canfield Imaging Systems, Fairfield, NJ. To purchase a system in the US, obtain more information, or identify a distributor in your country, contact us at +1.973.276.0336 or by email at info@canfieldsci.com.

Is Breast Sculptor easy to use?

Breast Sculptor software is very easy to use. Its wizard-like interface guides the user through three quick and easy steps to create a realistic outcome.

  • Place landmarks on the patient's 3D image
  • Select saline or gel implants from your choice of manufacturer
  • Review the outcome with your patient

Breast Sculptor's convenient viewing tools makes it easy to show your patient the likely outcome from any angle, as well as superimposed over the pre-op image or side-by-side. You may also elect to have Breast Sculptor generate a custom report with pre-op photos, breast measurements and implant selection information.

What are the landmarks used for?

Primarily, the landmarks are used to enable Breast Sculptor to provide key measurements used for implant selection. However, the landmarks are also used to help the software identify where the patient's chest wall is located for purposes of creating the modeled outcome.

What implant parameters are selectable?

Breast Sculptor provides the ability to select the implant brand, fill type (gel or saline), profile, shell (smooth or textured), volume, and in the case of saline implants the amount of fill added. The manufacture's catalog number is provided. You may also select different implant parameters for each breast to help address breast asymmetry.

Is breast asymmetry identified?

All patients exhibit some level of asymmetry. In some cases, the level of asymmetry is large enough that it should be addressed during augmentation surgery. Breast Sculptor conveniently provides an indication of asymmetry by showing the difference in volume between the two breasts. The user can then make adjustments to the implant parameters, including volume and profile changes to deal with the asymmetry.

Are you able to complete outcomes with ptotic breasts?

Breast Sculptor includes the ability to model the lifting of the breast in conjunction with an augmentation. The process is done directly after the implants are modeled and before the final outcome is created. This enables the user to provide a comparison to the patient of what the augmentation would look like with or without the lift.

Can I make adjustments to the outcome after it is modeled?

Yes. The software provides the ability for the surgeon to make easy adjustments to ensure the simulation matches what the surgeon considers the expected outcome to be.

Is the quality of the patient's 3D image good enough to show on my large panel display?

Yes. Canfield's VECTRA 3D Imaging system provides high resolution images, suitable for displaying on the largest displays. Even the pores on the patient's skin are displayed.

What is included with Breast Sculptor?

Breast Sculptor software comes as part of a complete turn-key solution suitable for professional Breast Sculptor consultations. This solution includes the VECTRA III High Resolution 3D Capture System, 3D Mirror software, computer, and one day of installation and training.

Can I run Breast Sculptor on the computer in my consultation room?

Yes. Breast Sculptor can be run from a computer other than the one provided with your turn-key system. Of course, the high quality Breast Sculptor images require additional graphic card performance. Contact Canfield Imaging Systems to see if your computer is adequate for running Breast Sculptor. If not, we can make recommendations for computers or upgrades best suited for this purpose.

Where can I purchase Face Sculptor?

Face Sculptor and 3D Mirror systems are manufactured in the United States by Canfield Imaging Systems, Parsippany, NJ. To purchase a system in the US, obtain more information, or identify a distributor in your country, contact us at +1.973.434.1201 or by email at info@canfieldsci.com.

Support

Canfield Support
  • 1-year limited warranty, including support & upgrades
  • Includes advanced replacement, round trip shipping in US
  • Includes software feature improvements and enhancements
  • Canfield Care available

Warranty

VECTRA 3D Imaging System
  • 1-year limited warranty, including support & upgrades
  • Includes advanced replacement, round trip shipping in US
  • Includes software feature improvements and enhancements
  • Canfield Care available
Dell Computer
  • 3-year limited warranty in the US

Training

VECTRA Installation & Training
  • Additional on-site training by Canfield is available, contact us for pricing and additional information.
  • Unlimited Webinars are included at no charge during the first year or with Canfield Care ($250 value per webinar)
