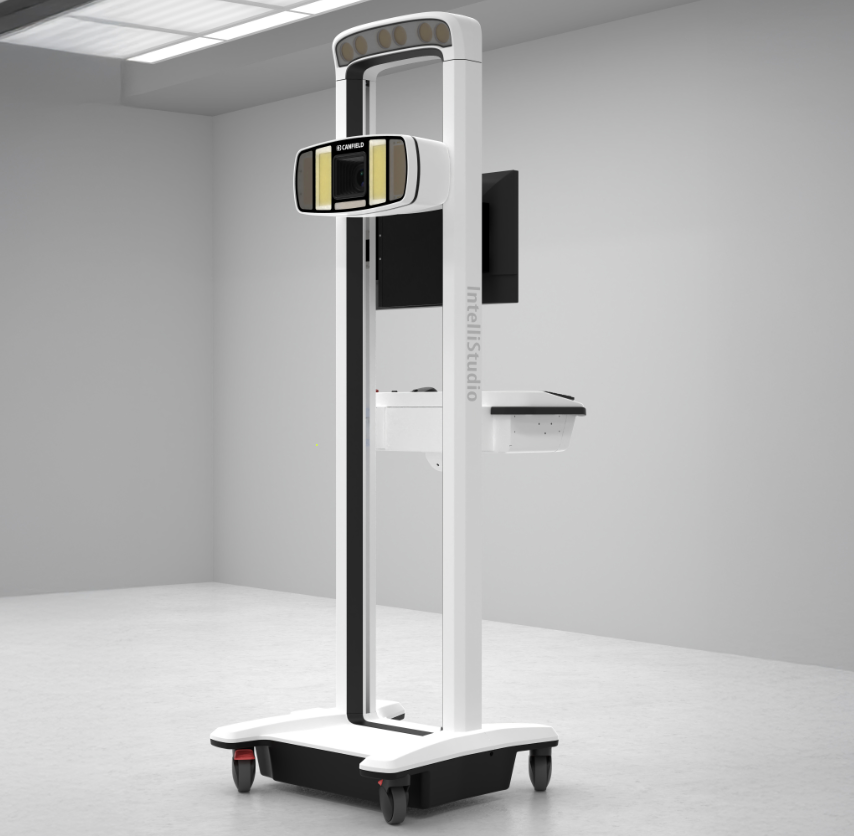

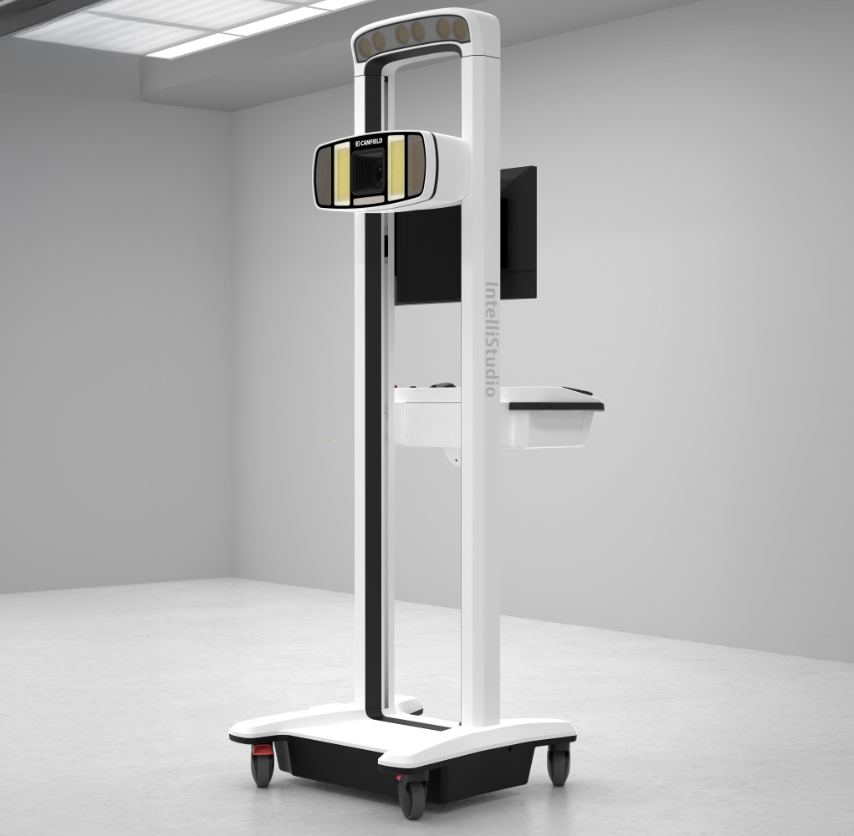

IntelliStudio

Standardized studio quality photos made simple

From facial imaging to full body photography, the user is guided through the entire photo process.

  • Standardized templates streamline acquiring consistent and repeatable image sets.
  • Capture templates guide patient poses and control camera orientation, zoom, and flashes for friction-free studio photography.
  • Canfield's MatchPose® assures follow-up images are perfectly registered to baseline.

Any user can capture repeatable, perfectly registered before and after images, every time.

Studio-quality abdomen captures from different angles with IntelliStudio

IntelliStudio offers integrated video capabilities with LED lighting, including record, playback, and zoom capabilities.

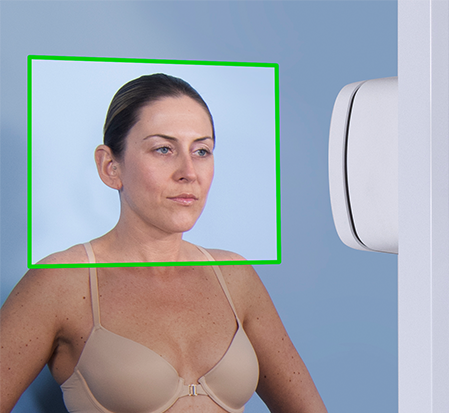

Auto Facial Recognition

Auto facial recognition algorithms ensure that the patient's face is automatically recognized, setting the camera height for quick and standardized patient positioning.

Studio Lighting

Studio lighting reveals skin features while maintaining aesthetics and reducing shadows. Cross-polarized lighting eliminates surface reflection for better visualization of subsurface information.

IntelliStudio's standardized capture templates streamline acquiring consistent image sets for intended procedures.

On-screen diagrams guide patient poses for the baseline image set, and Canfield's MatchPose assures perfectly registered follow-ups.

Camera orientation, zoom, and flashes are automatically controlled by the selected template.

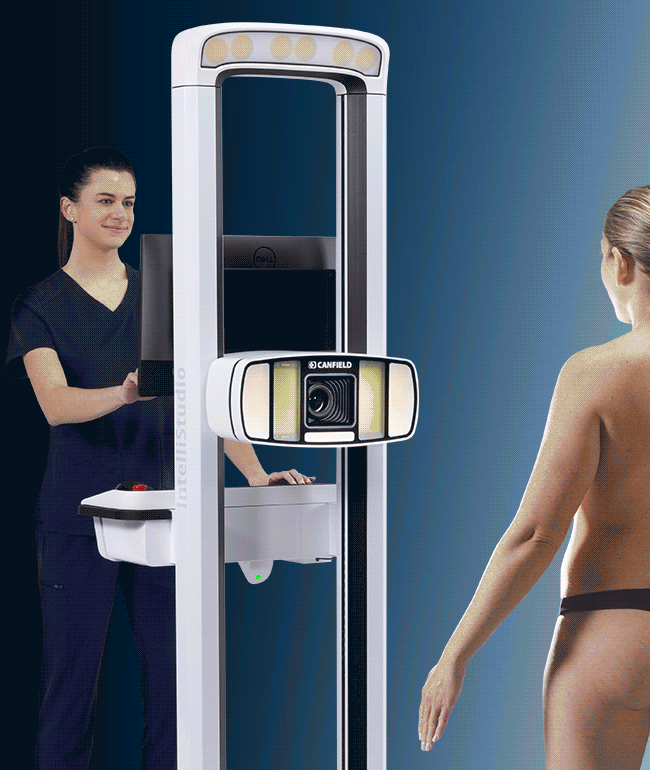

Face and Abdomen Capture

“

The highest available standard in medical photography and skin analysis tools, as provided by Canfield Scientific, has been the foundation of my cosmetic dermatology practice from its start.

”

Dr. Patricia OgilvieDr. Patricia Ogilvie,Skin Concept

Related Products

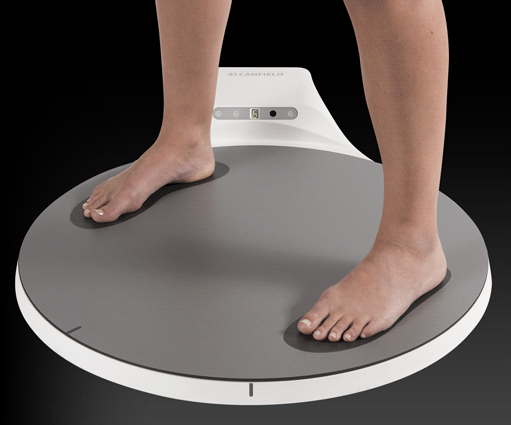

Intellistage®

Intellistage®

Automated turntable
Mirror®

Mirror®

Medical Imaging Software
HairMetrix®

HairMetrix®

Fully Automated Unclipped Analysis
VECTRA® WB360

VECTRA® WB360

Whole Body 3D Imaging
D200evo

D200evo

High-Resolution Dermoscopy Imaging

Tech Specs & Requirements

System Power
  • 100-120V AC, 50/60 Hz, 10.0A or
  • 220-240V AC, 50/60 Hz, 10.0A
  • Class I Laser
    • IEC 60825-1:2014
    • Max output of laser radiation is less than 10mW
Capture Computer
  • Configured and supplied by Canfield. Computers from other suppliers are not supported.
Consultation Computer Recommendations (not supplied)
  • Operating system:
    • Windows 10 or 11 Professional, 64 bit – (Recommended)
    • NOT SUPPORTED: Windows Home Edition and Windows VISTA
  • Processor: Intel Core i7 10th Gen (or higher)
  • System memory (RAM): 16 GB or higher
  • Minimum 2 GB available disk space for installing application
  • Minimum 1 TB available disk space recommended for data
  • Graphics card:
    • 2 GB dedicated memory minimum (4 GB Highly Recommended)
    • Dedicated nVidia or AMD cards (nVidia Highly Recommended)
    • Driver: latest available
    • 3.0 or later Open GL
  • USB Ports: 2 dedicated ports (USB 2.0)
  • Display: 1920 x 1080 (FHD) minimum; 3840 x 2400 (4K) maximum
  • Microsoft Security Essentials anti-virus software recommended
  • Wired printers (recommended for speed)
  • 1 Gbps Ethernet connection for networking - Wifi not supported
Software
  • IntelliStudio® Capture Module
  • Mirror® PhotoFile®
  • Mirror® PhotoTools
Mirror iPad App
  • Minimum support of 802.11n or later protocol by the intra-office Wi-Fi router
  • Requires iPad capable of running the current version of iOS
  • Mirror desktop software running on Windows OS is required to support Mirror iPad app database
Server / Network Guidelines (not supplied - Minimum recommendations)
  • Windows Server 2016 64-bit and 2019 64-bit
  • Microsoft SQL Server 2017 and 2019 (Express edition is installed by default)
  • 2.2 GHz or faster processor
  • 16GB system memory (RAM)
  • 1 Gbps wired LAN connectivity (Wi-Fi not supported)
  • 1 Terabyte HDD, minimum. Space required is dependent upon patient volume, camera used, and settings.
  • RAID 1 - NOT SUPPORTED
  • Regularly scheduled backups are highly recommended.
Notes
  • We do not support using a server class OS as a workstation.
  • WAN Connectivity is NOT supported
  • Workstation based cloud licensing

Canfield Care® Support & Training

Canfield Care includes:
  • Unlimited expert technical assistance
  • Remote diagnostic service
  • Advanced hardware exchange
  • Marketing support
  • Remote training
  • Unlimited Webinars ($250 value per webinar)
  • ViewMyConsult® client portal
  • Extended Canfield Care is available
  • On-site training: Additional on-site training by Canfield experts is available.
  • Contact Canfield or your Canfield Authorized Distributor for pricing and additional information.
